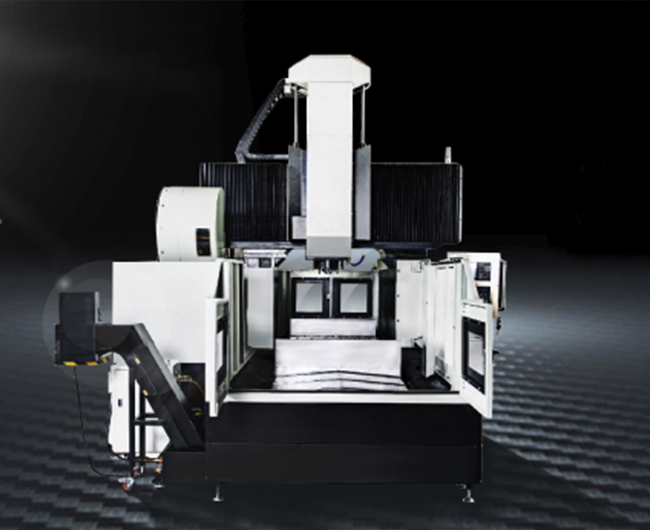

DCM
Work range up to 5200 mm
Widest column design in the class
Unique zig-zag design in the cross-beam
Multiple machining solution with options.
- Heavy duty cuttung solution with ZF gear box
- Multi face milling with angular heads
- Increase accuracy with ball screw cooling and linear scales
Technical Specifications
| Table | ||
|---|---|---|
| Area of Table | mm | 4000 x 1200 |
| Working Area | mm | 4000 x 1500 |
| T-Slot | mm | 190 x 28 x 6 |
| Travel | ||
| X - Axis Travel | mm | 4000 |
| Y - Axis Travel | mm | 1500 |
| Z - Axis Travel | mm | 1500 |
| Door Width | mm | 1500 |
| Spindle | ||
| Spindle Taper | BT50 | |
| Spindle R.P.M. | rpm | 6000 |
| 3 - Axis Rapid Traverse | m/min | 12/20/12 |
