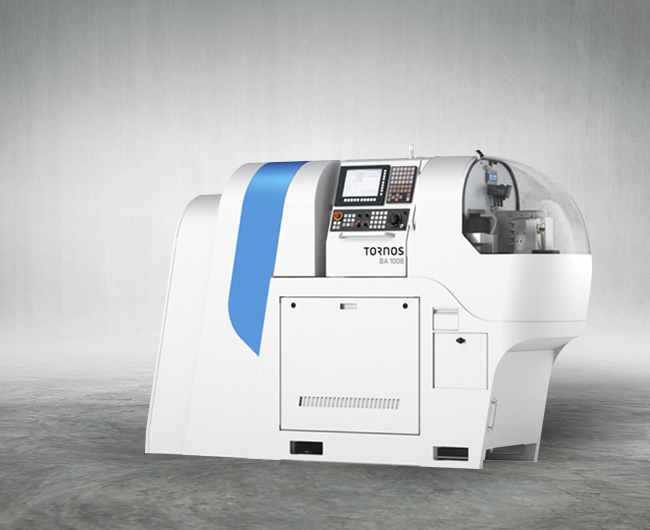

The ultra-compact bar miller born in watchmaking territory
The BA 1008 is fed with bars via the machine, using a divider system which allows workpieces up to a diameter of 16 mm to be loaded. Positioned machining operations and interpolation between the tool systems and the workpiece are easily possible. With 4 frontal spindles, 3 lateral spindles and 2 secondary operation spindles, the BA 1008 is well equipped to tackle any challenges.
Benefits:
- Ergonomics based on the famous SwissNano from Tornos
- High productivity
- Reduced dimensions
- Excellent value for money
Types of workpiece:
- Dial components
- Appliques
- Settings
- Windows
- Movement and exterior components.
Technical Specifications
| Technical specifications | BA 1008 | |
|---|---|---|
| Axes | axes | 6 linear + 1 C axis +1 B axis (option) |
| Max bar diameter | mm | 16 |
| Frontal spindles | rpm | 4 spindles 12`000, 28`000 or 80`000 (ER11-UP / ER8-UP collets) |
| Lateral spindles | rpm | 3 spindles 12`000, 28`000 or 80`000 (ER11-UP / ER8-UP collets) |
| Counter-operations | rpm | 2 spindles 12`000, 28`000 or 80`000 (ER11-UP / ER8-UP collets) |
| Sawing | 1 tool (Ø 80mm) | |
| Dimensions L x W x H | mm | 2400 x 650 x 1600 |
